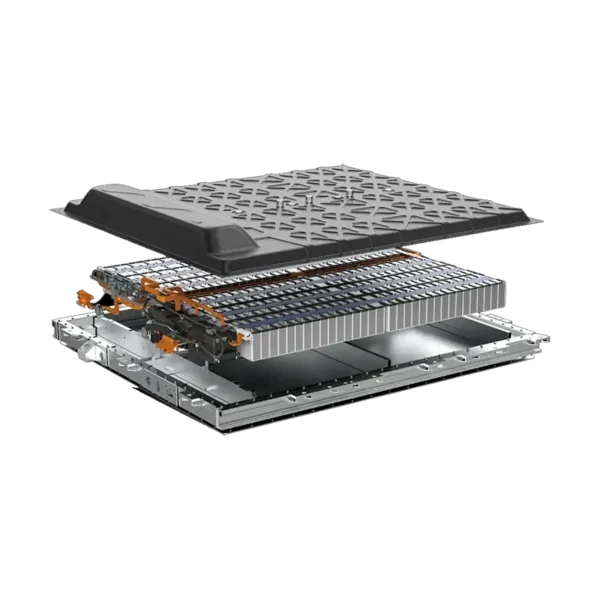

4C Fast Charging CTP Passeneger Vehicle Battery Packs
Key Characteristics:
- 70% optimized space utilization for higher system efficiency
- Up to 140 Wh/kg energy density for compact, high-performance designs
- Premium dustproof and waterproof protection for harsh environments
- Zero thermal propagation for enhanced safety and reliability
Application: BEV
Cell Chemistry：LiFePO4
Items | Technical Indicators |
Cell Chemistry | LiFePO4 (LFP) |
Energy (kWh) | 66.46 |
Dimensions (mm) | 1628*1399*142 |
Operating Voltage Range (V): | 384-700.8 |
Nominal Voltage (V) | 579.6 |
Charging Time (Minimum @10–80% SOC) | 10 |
Peak Charging Power (kW) | 259@25℃,10s,50%SOC |
Peak Discharging Power (kW) | 306@25℃,10s,50%SOC |
Thermal Management | Liquid cooling or direct cooling |
IP Rating | IP67 |
Connection Mode | Quick Plug Capability |
Communication Protocol | CAN |
Operating Temperature (°C) | -30~60 |
Battery Capacity (Ah) | 107.5 @1/3C |
Battery Nominal Voltage (V) | 618.24V2@1/3C |
Battery Energy Density (Wh/kg) | ≥142Wh/kg |
Battery Dimensions (mm) | 40*194*112.6 |
Application Fields | BEV |
