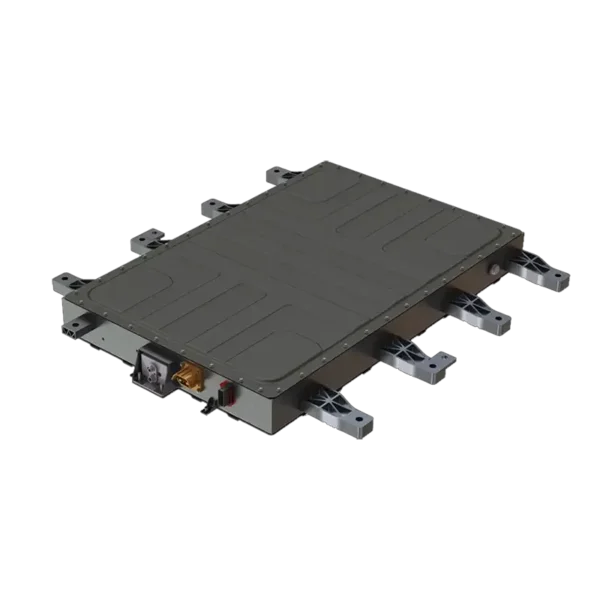

GREEN BANK PHEV Pack Passeneger Vehicle Battery Packs
Tailored for the PHEV Market
- A customized green solution for plug-in hybrid vehicles, targeting emissions reduction and fuel savings.
Flexible Capacity Range
- Battery packs range from 10–55kWh, meeting various driving range requirements.
Improved Efficiency & Cold Performance
- Up to 35% fuel savings vs. traditional energy models
- Reliable cold start at -30°C, ensuring performance in harsh climates
Application: PHEV
Cell Chemistry：LiFePO4
About GREEN BANK Pack
For the growing PHEV market, REPT BATTERO brings the GREEN BANK series of special battery packs, which is a customised green emission reduction solution for PHEVs.
REPT BATTERO’s GREEN BANK series of battery packs range from 10-55kWh to meet the needs of different range, and the fuel saving rate of PHEV vehicles equipped with these packs can reach more than 35% compared with traditional energy models. The battery pack has excellent low-temperature performance and can achieve ultra-low temperature cold starting at -30℃.
Items | Technical Indicators |
Cell Chemistry | LiFePO4 (LFP) |
Energy (kWh) | 10 |
Dimensions (mm) | 1098*716*120 |
Operating Voltage Range (V): | 240-438 |
Nominal Voltage (V) | 380.4 |
Charging Time (Minimum @10–80% SOC) | 34 |
Peak Charging Power (kW) | 66kW@10s |
Peak Discharging Power (kW) | 133kW@10s |
Thermal Management | Direct Cooling and Thin-Film Heating |
IP Rating | IP67 & IPX9K |
Connection Mode | Quick Plug Capability |
Communication Protocol | CAN |
Operating Temperature (°C) | -30~55 |
Battery Capacity (Ah) | 28 |
Battery Nominal Voltage (V) | 3.17 |
Battery Energy Density (Wh/kg) | 140 |
Battery Dimensions (mm) | 26.5*148*85 |
Application Fields | PHEV |
